Home Series
Household Kitchen Fire Suppression System
A compact, always-on guard for the family stovetop. Mounted between the hood and the cooktop, it watches the pots 24/7 — when oil ignites, a 68 °C fusible bulb bursts and the system kills the flame in 1–5 seconds. No electricity, no buttons, nothing to remember.
Automatic mechanical activation

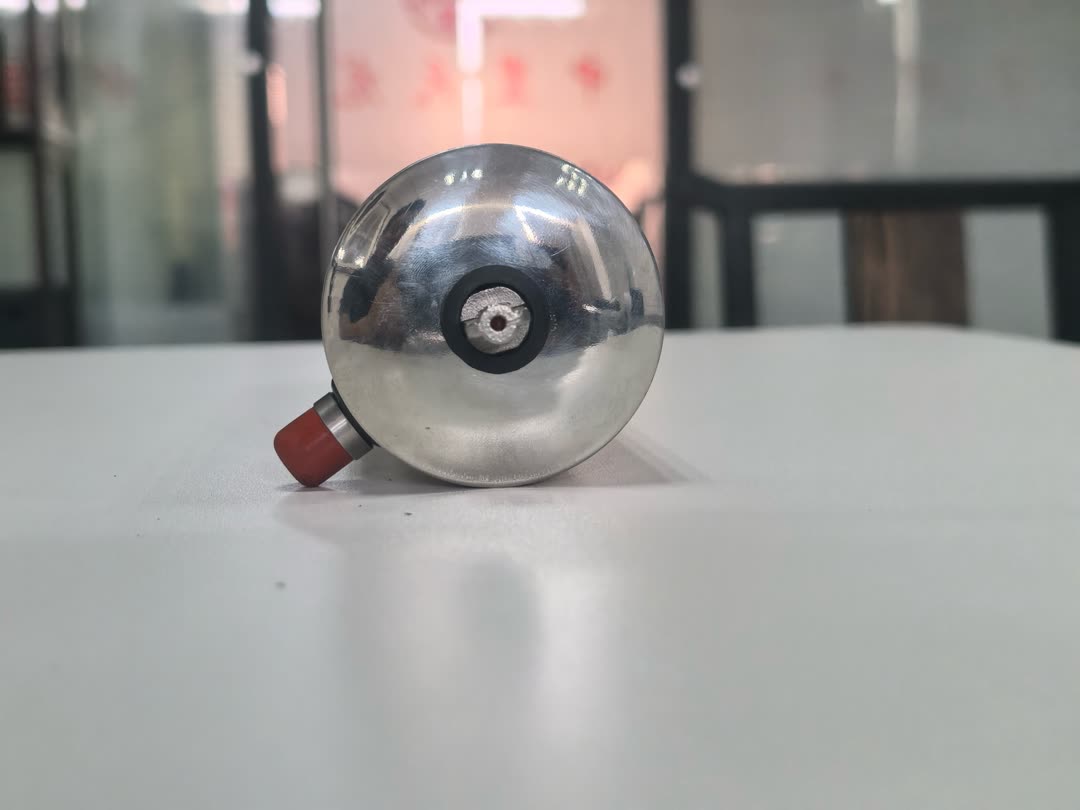

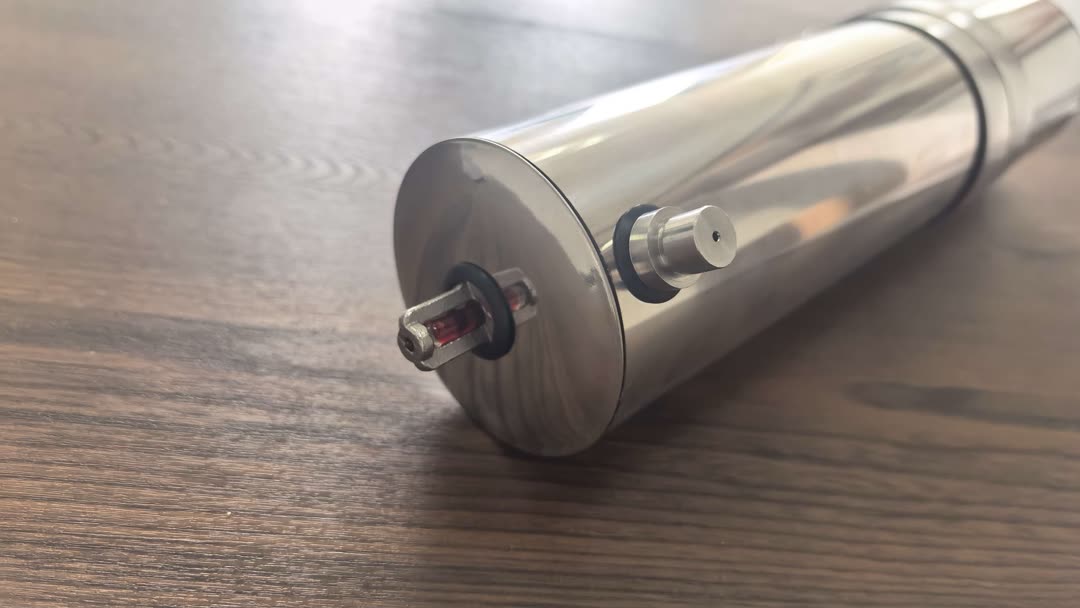

Thermal glass bulb detects 68–183 °C and fires on its own — works during a power cut, safe for elderly family members and tenants.
Built for cooking-oil fires
Water-based Class F agent reacts with hot oil to form a foam blanket that seals the pan and prevents re-ignition — never throw water on burning oil again.
Optional gas-line cut-off
A thermal sensor can trip the gas shut-off valve the moment a fire starts, removing the fuel source automatically.
Two models
One pot or two — sized to your stove
Single-Pot Household System
One thermal probe + one atomizing nozzle protect a single wok or fryer. For standard home kitchens with one cooking zone you actually leave unattended.
Dual-Pot Household System
Two probes + two atomizing nozzles on one 700 ml cylinder guard two burners or a wide double wok station — the unit shown on this page.
How it works
Five seconds, start to finish
Specifications
Nameplate data — S-2-S shown
| Model | S-1-D (single-pot) | S-2-S (dual-pot) |
|---|---|---|
| Agent charge | 550 ml | 700 ml |
| Extinguishing agent | Water-based Class F (cooking-oil) agent | |
| Fire class | Class F — deep-fryer / cooking-oil fires | |
| Max protected oil volume | 5 L (one pot) | 3.5 L × 2 (two pots) |
| Thermal probes / nozzles | 1 + 1 | 2 + 2 |
| Working pressure | 0.8 ± 0.05 MPa | |
| Discharge time | ≥ 12 s (nameplate), residual ≤ 1% | |
| Activation temperature | 68–183 °C fusible glass bulb | |
| Ambient temperature | 5–55 °C | |
| Material | Stainless steel cylinder, probe and nozzle | |
| Service life | 3 years (agent replaced after any discharge — one-shot system) | |
| Manufacturer | Tianjin Lanjian Fire-fighting Equipment Co., Ltd. (Tianjin, China) | |
Data from the product nameplate and the manufacturer’s installation & user manual. Extinguishing performance figures: flame-out within 1–5 s of activation.

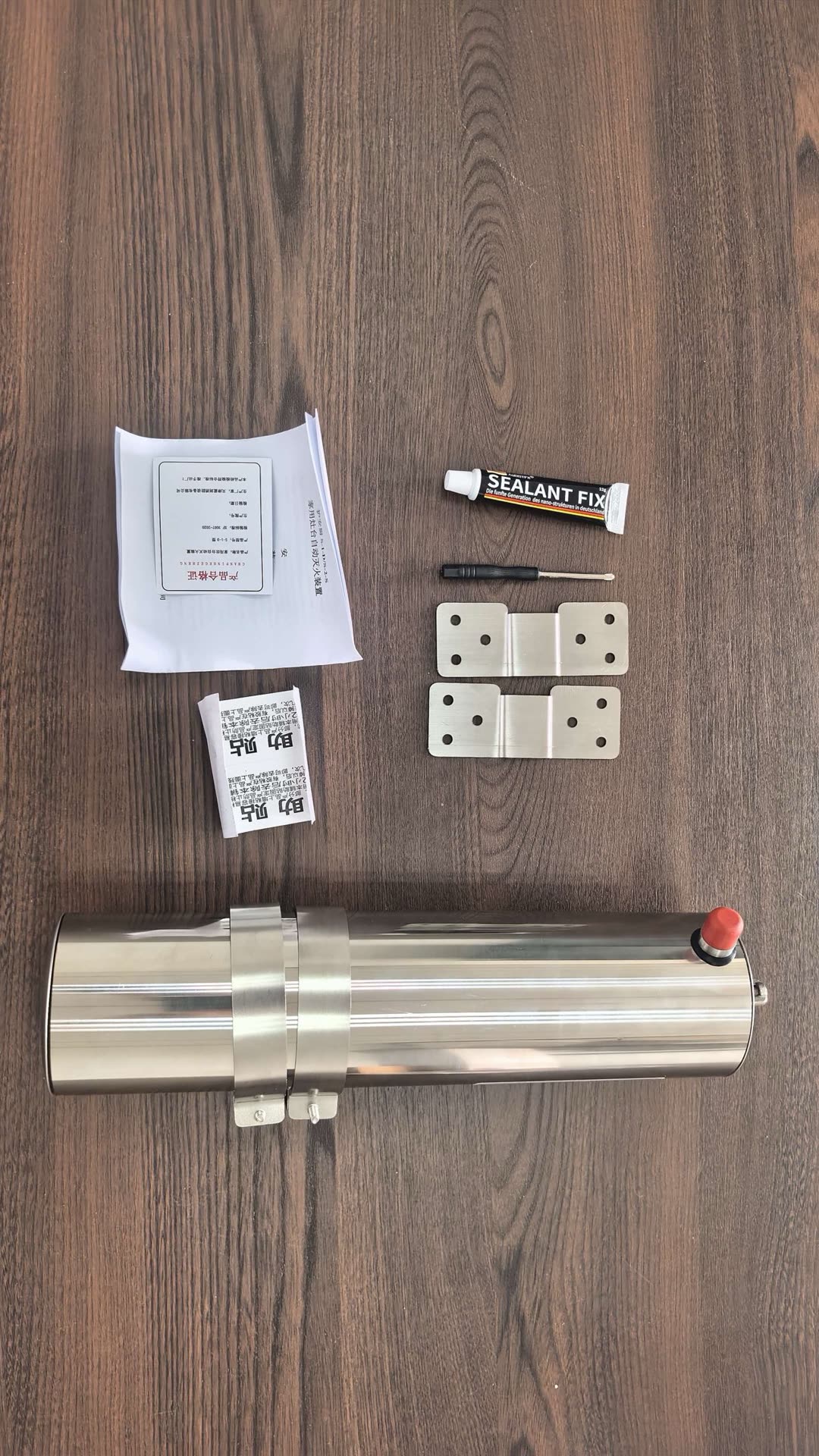

In the box
Complete mounting kit included
Every unit ships ready to install on tile, stainless or painted walls — no extra purchase needed.
Suppression cylinder
Charged and pressure-sealed at the factory; twin mounting straps with wall lugs already fitted.
2 × stainless wall brackets + screws
Self-tapping screws for drill mounting, or use the supplied adhesive kit for no-drill installation.
Sealant, adapters and service tool
Thread sealant, nozzle adapters, blanking cap and a screwdriver for the annual check.
Installation
Mounted in three steps, no electrician
Get a quote
Protect your kitchen project with the Home Series
Ideal for apartments, dormitories, rental housing, staff canteens and appliance retailers. Tell us the destination country and quantity — we reply with factory pricing within 24 hours.
Request a quotation
