Home Series

Household Kitchen Fire Suppression System

A compact, always-on guard for the family stovetop. Mounted between the hood and the cooktop, it watches the pots 24/7 — when oil ignites, a 68 °C fusible bulb bursts and the system kills the flame in 1–5 seconds. No electricity, no buttons, nothing to remember.

🌡️

Automatic mechanical activation

Thermal glass bulb detects 68–183 °C and fires on its own — works during a power cut, safe for elderly family members and tenants.

🍳

Built for cooking-oil fires

Water-based Class F agent reacts with hot oil to form a foam blanket that seals the pan and prevents re-ignition — never throw water on burning oil again.

🔌

Optional gas-line cut-off

A thermal sensor can trip the gas shut-off valve the moment a fire starts, removing the fuel source automatically.

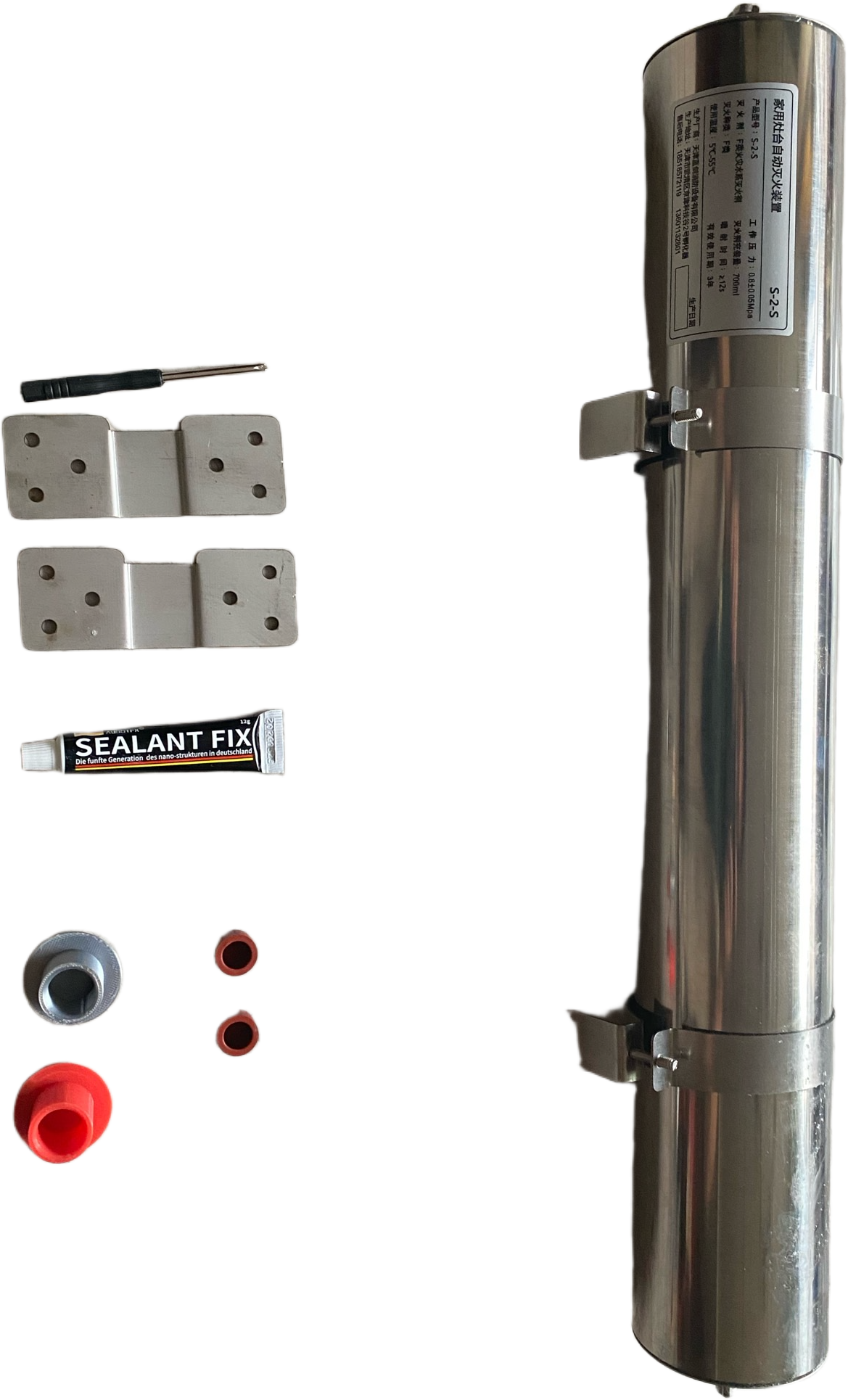

Household kitchen fire suppression system full kit — cylinder, wall brackets, mounting screws, sealant and fittings

Two models

One pot or two — sized to your stove

S-1-D

Single-Pot Household System

One thermal probe + one atomizing nozzle protect a single wok or fryer. For standard home kitchens with one cooking zone you actually leave unattended.

500 mlAgent charge

5 LMax protected oil

Quote S-1-D

S-2-S

Dual-Pot Household System

Two probes + two atomizing nozzles on one 700 ml cylinder guard two burners or a wide double wok station — the unit shown on this page.

700 mlAgent charge

3.5 L ×2Max protected oil

Quote S-2-S

How it works

Five seconds, start to finish

1Oil ignites; flame temperature rises past the bulb rating (68 °C rated, detects 68–183 °C).

2The fusible glass bulb shatters — purely mechanical, no power or wiring involved.

3Pressurised driver (0.8 ± 0.05 MPa) pushes the Class F agent through the atomizing nozzle.

4Fine mist hits the burning oil, saponifies into a foam blanket — flame out in 1–5 s, no oil splash.

5Optional thermal link trips the gas shut-off valve; pan stays sealed until you clear it.

Specifications

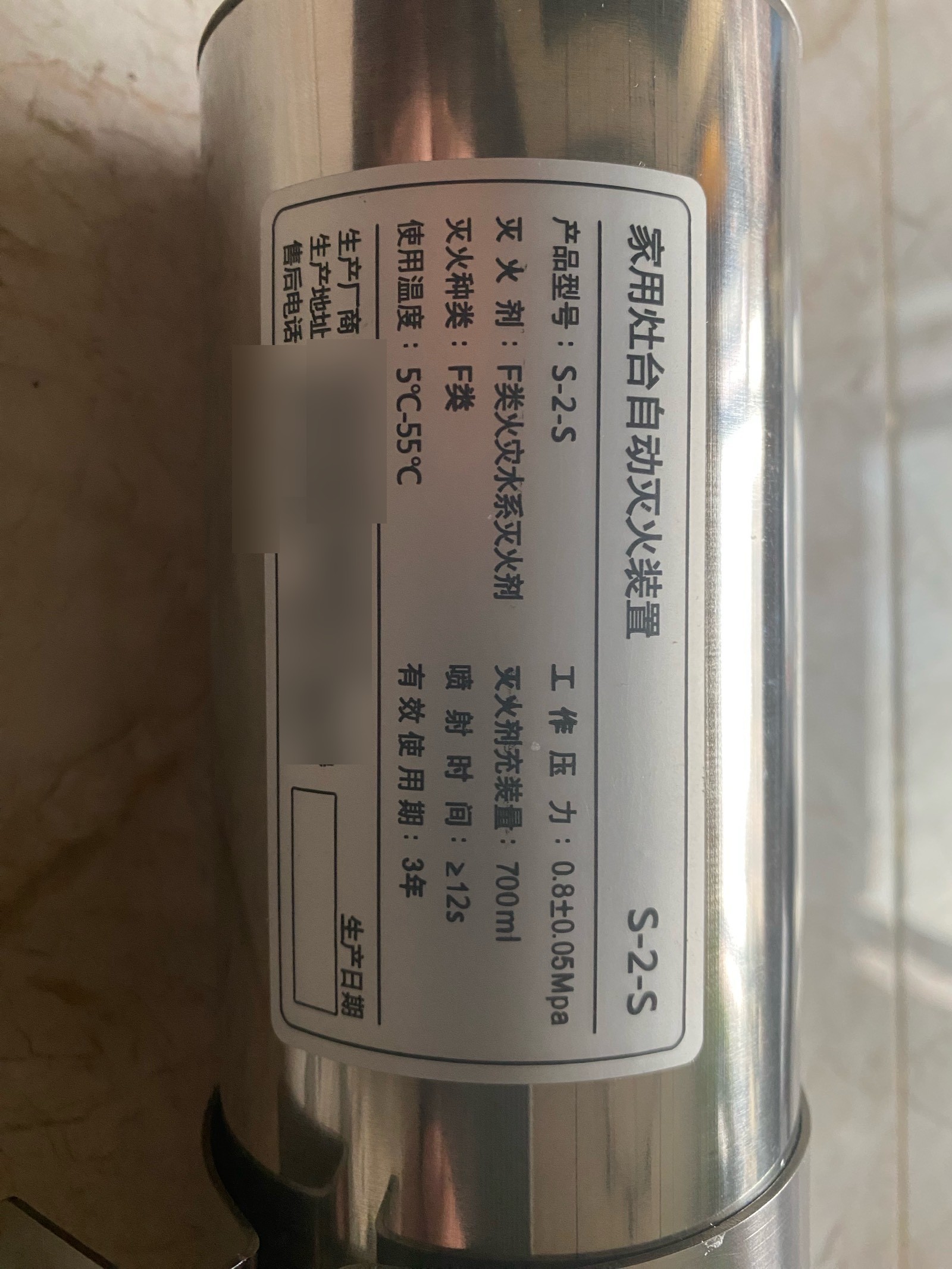

Nameplate data — S-2-S shown

Model	S-1-D (single-pot)	S-2-S (dual-pot)
Agent charge	500 ml	700 ml
Extinguishing agent	Water-based Class F (cooking-oil) agent
Fire class	Class F — deep-fryer / cooking-oil fires
Max protected oil volume	5 L (one pot)	3.5 L × 2 (two pots)
Thermal probes / nozzles	1 + 1	2 + 2
Working pressure	0.8 ± 0.05 MPa
Discharge time	≥ 12 s (nameplate), residual ≤ 1%
Activation temperature	68–183 °C fusible glass bulb
Ambient temperature	5–55 °C
Material	Stainless steel cylinder, probe and nozzle
Service life	3 years (agent replaced after any discharge — one-shot system)
Manufacturer	Tianjin Lanjian Fire-fighting Equipment Co., Ltd. (Tianjin, China)

Data from the product nameplate and the manufacturer's installation & user manual. Extinguishing performance figures: flame-out within 1–5 s of activation.

In the box

Complete mounting kit included

Every unit ships ready to install on tile, stainless or painted walls — no extra purchase needed.

🧯

Suppression cylinder

Charged and pressure-sealed at the factory; twin mounting straps with wall lugs already fitted.

🔩

2 × stainless wall brackets + screws

Self-tapping screws for drill mounting, or use the supplied adhesive kit for no-drill installation.

🧴

Sealant, adapters and service tool

Thread sealant, nozzle adapters, blanking cap and a screwdriver for the annual check.

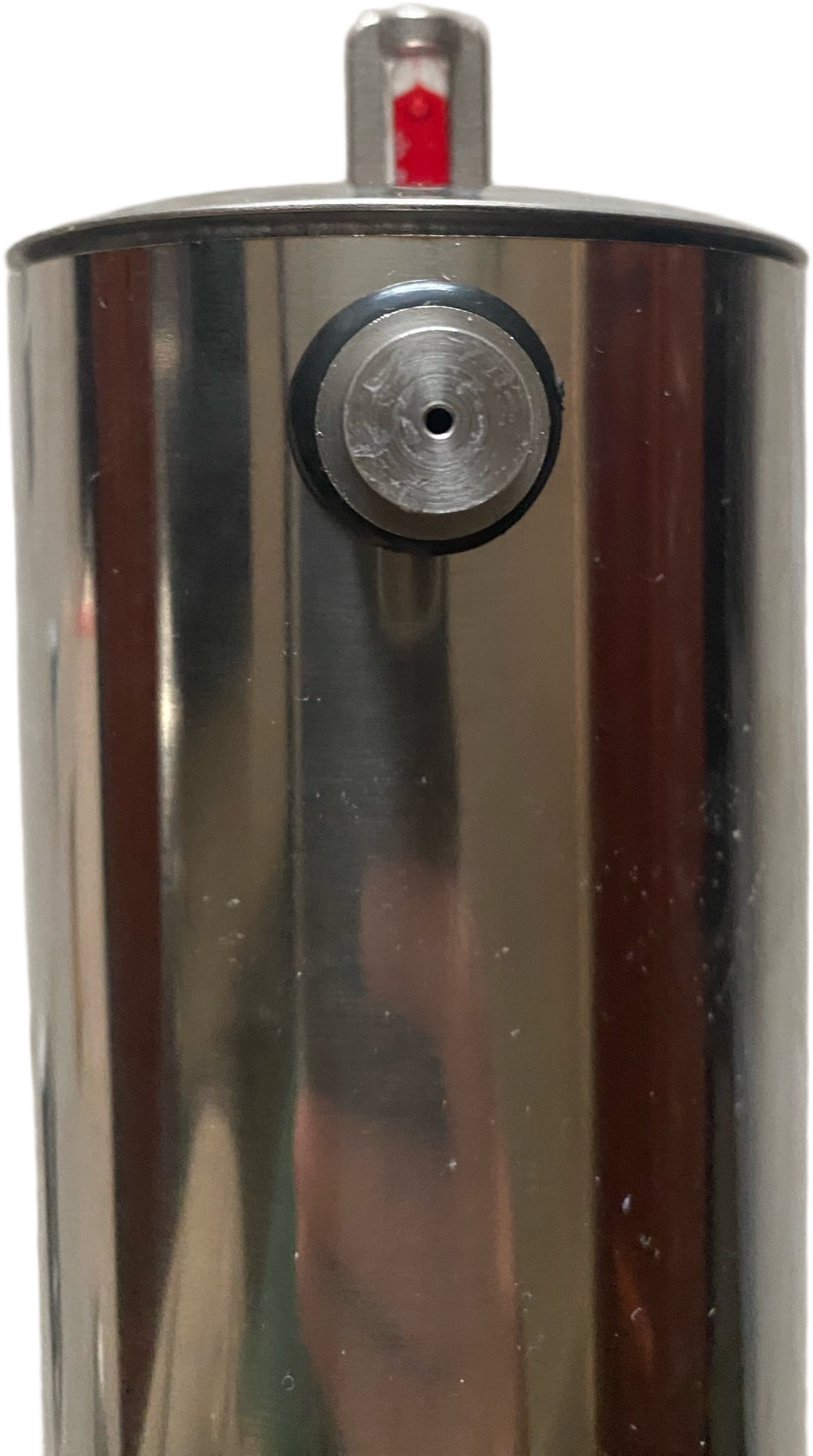

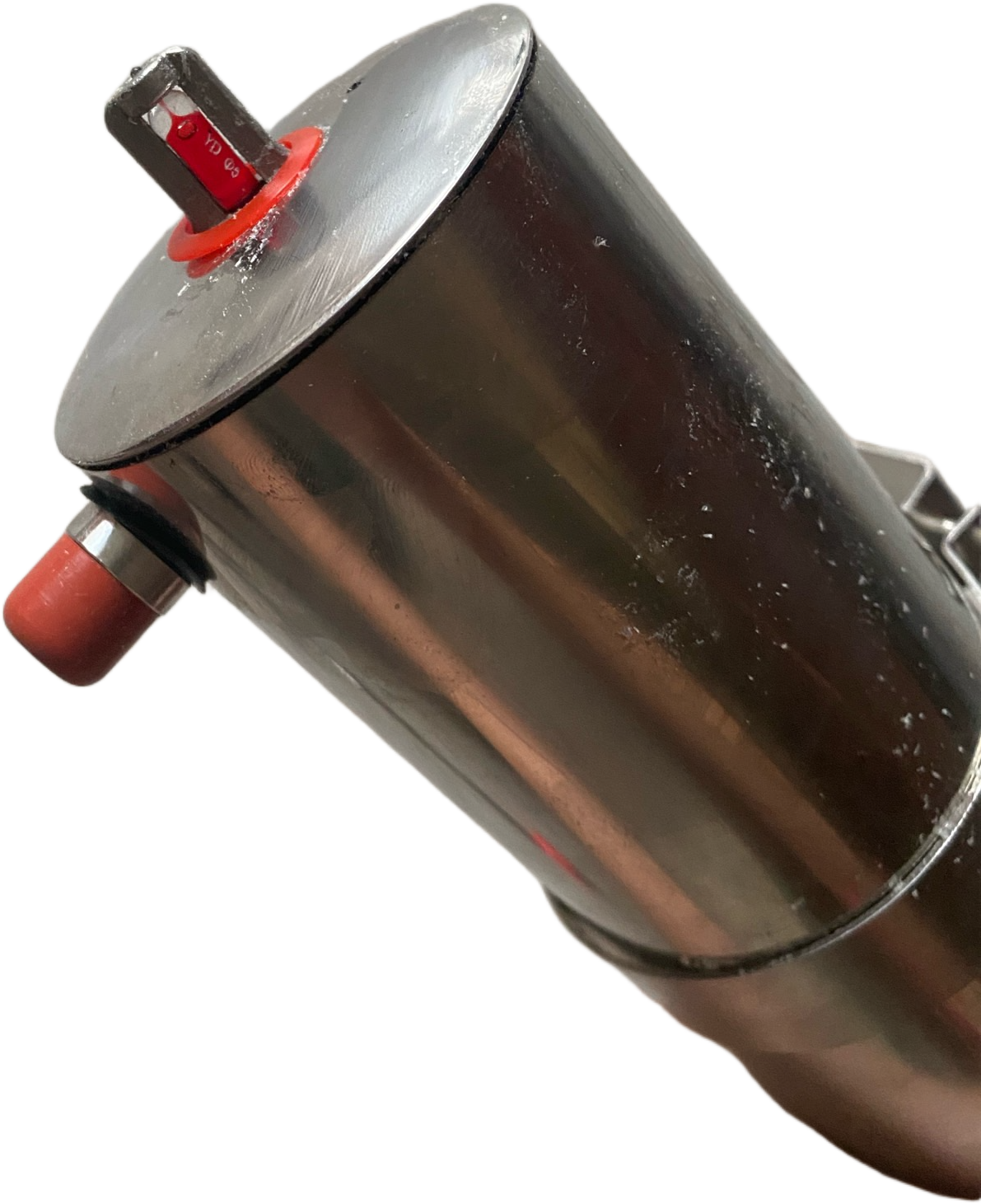

Household kitchen fire suppression system cylinder with 68°C fusible glass bulb — Cylinder top: 68 °C fusible glass bulb (red) and atomizing nozzle outlet.

Installation

Mounted in three steps, no electrician

1Mark two fixing points on the wall 10 cm below the hood, drill (or glue) the brackets.

2Clip the cylinder on, 60–70 cm above the cooktop — matches the standard 80 cm hood-to-stove gap.

3Angle each nozzle at the centre of its pot (≈40 cm coverage circle, fits a 35 cm wok). Done.

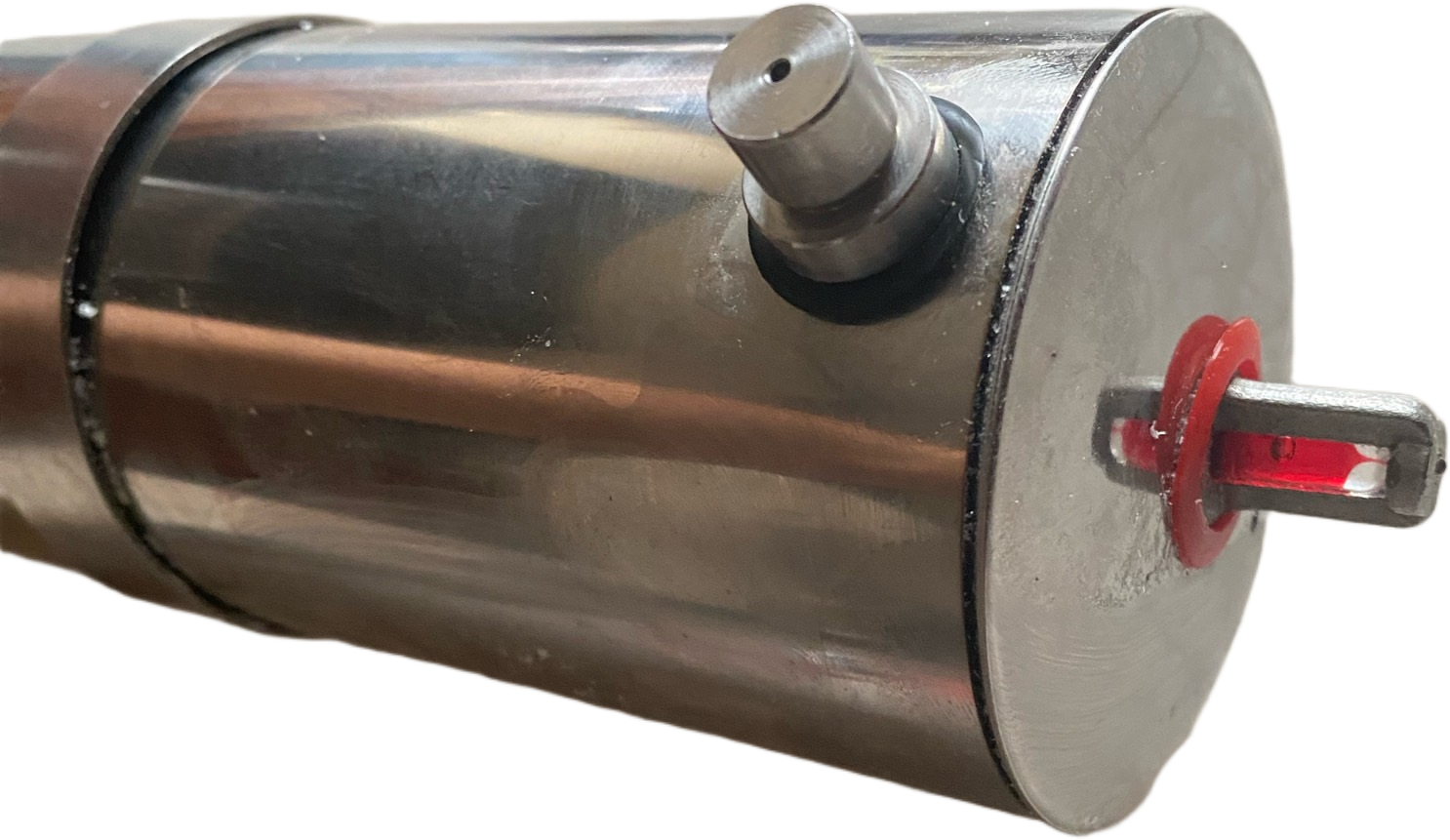

68 °C thermal bulbBursts on flame heat — purely mechanical trigger

Atomizing nozzleFine mist, steady pressure, no oil splash

Factory nameplateModel, charge, pressure and service life printed per unit

Get a quote

Protect your kitchen project with the Home Series

Ideal for apartments, dormitories, rental housing, staff canteens and appliance retailers. Tell us the destination country and quantity — we reply with factory pricing within 24 hours.

Request a quotation
